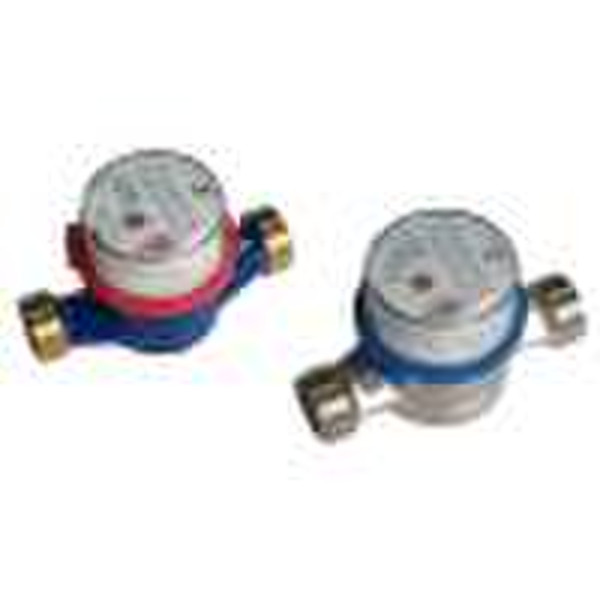

Single Jet Dry Type Vane Wheel Water Meter

Single Jet Dry Type Vane Wheel Water Meter Application: it measures the volume of cold potable water passing through thepipeline Features: 1) Dry type 2) Small light 3) Magnetic drive 4) Free rotating register 5) Easy and long term clear reading 6) Magnet resistance with model LXSC-13D3-25D3Specifications: 1) Working conditions: a) Water temperature: ≤ +40°C for cold potable water meter b) Water pressure: ≤ 1MPa 2) Compliance standard: ISO4064 3) Indication error: a) In the lower zone from Qmin inclusive up to but excluding Qt is ±5% for cold potable and hot water b) In the upper zone from Qt inclusive up to and including Qs is±2% for cold potable water and ±3% for hot water
